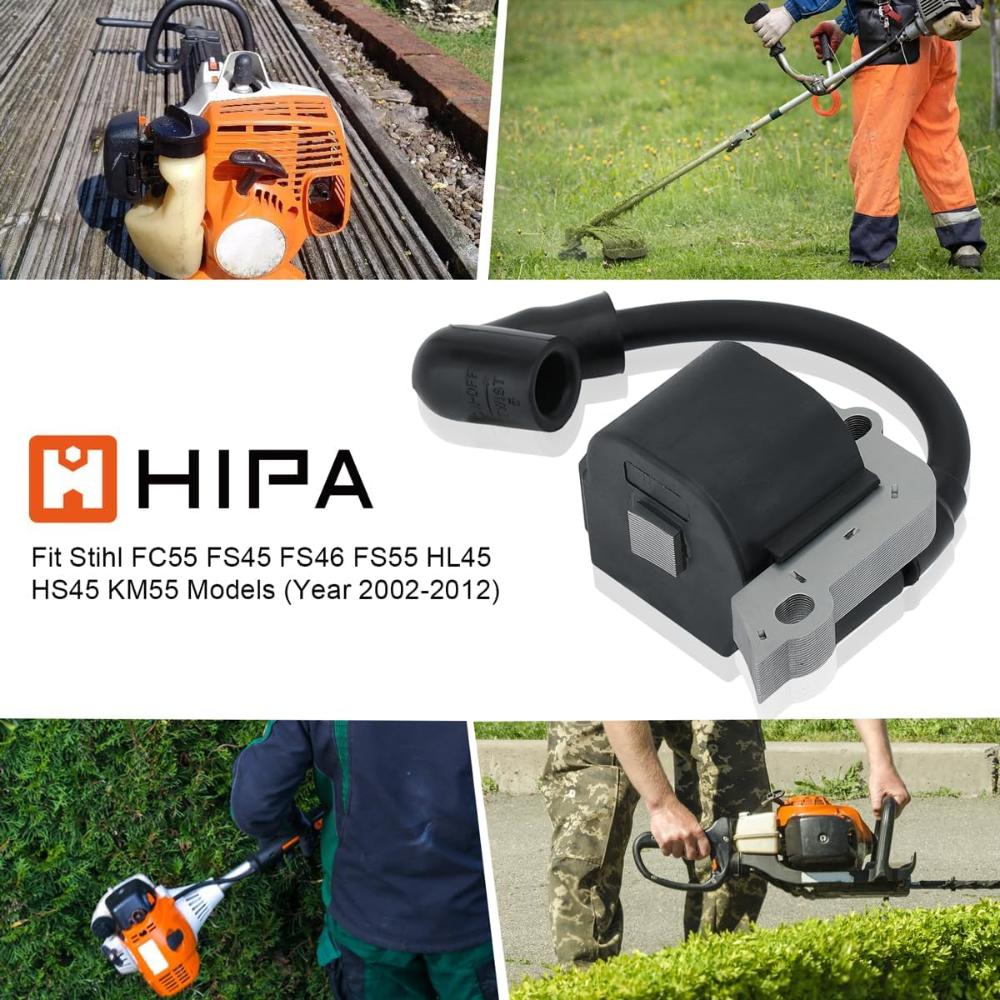

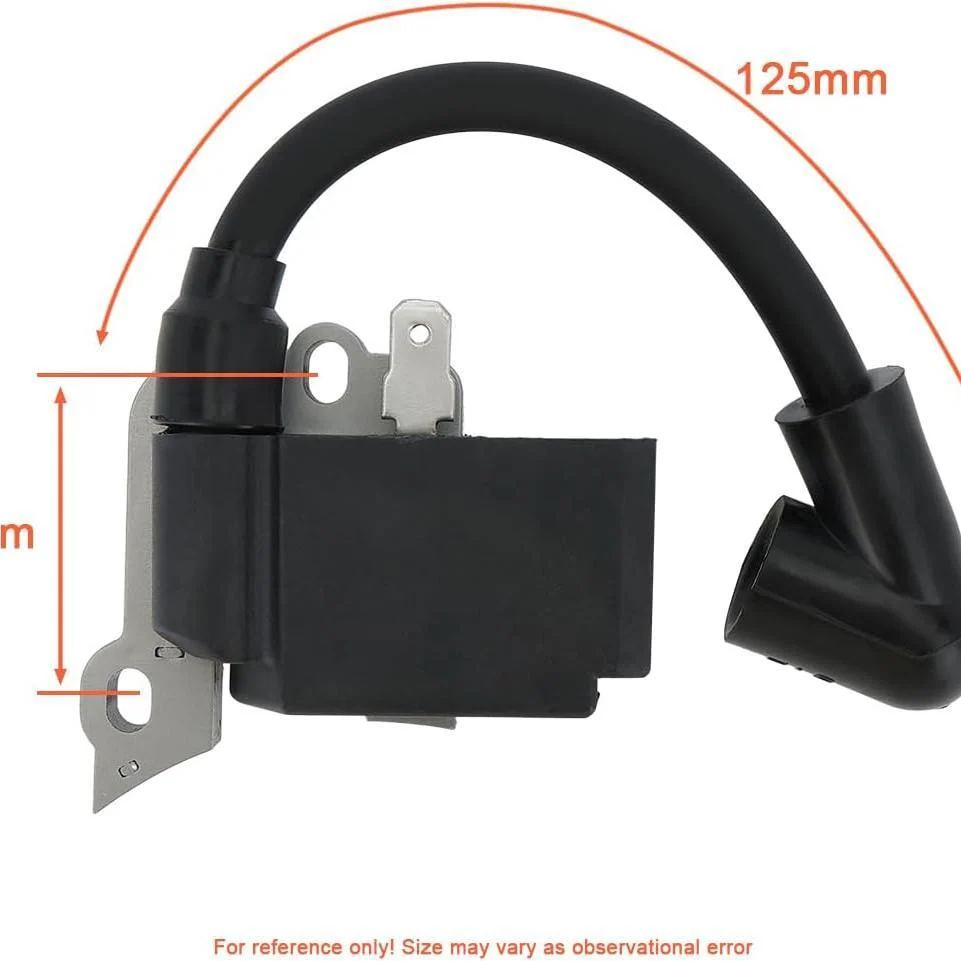

Hipa 4140 400 1308 Ignition Coil for Stihl FS38 FS55 FS45 FS46 FC55 HL45 HS45 KM55 Edger Hedge Trimmer Engine Replace 4140 400 1307 (After 2001)

4140 400 1309,4140 400 1311 Ignition Coil



Fit for Stihl FS38 2 Mix, FS55 2 Mix, FS55 R, FS55 R 2 Mix, HS45, HS52 Models Year 2013 to 2023.



Used on:

Stihl FC 55 Edger

Stihl FC 55 Z Edger

Stihl FC 55-DZ Edger

Stihl FS 45 Brushcutter

Stihl FS 46 Brushcutter

Stihl FS 55 Brushcutter

Stihl HL 45 Long Reach Hedge trimmer

Stihl HL 45 Z Long Reach Hedge trimmer

Used on:

Stihl HL 45-DZ Long Reach Hedge trimmer

Stihl HS 45 Petrol Hedge trimmer

Stihl HS 45 Z Petrol Hedge trimmer

Stihl KM 55 Engine

Stihl KM 55 R Z Engine

Stihl KM 55C Engine

Stihl KM 55R Engine

Please note replacing this module would differ based on your unit, however the basic steps would be the same.



• To complete this repair you would need screwdriver set.
• Remove the housing/covers from the unit
• Remove the spark plug，Bind the cylinder
• Remove the air filter cover and side cover
• Remove the throttle cable from the carbureto
• Disconnect the wire，Remove old ignition coil
• Install new ignition coil，Install the red wire，Set the gap，Install the black wire
• Reassembly and test the unit
